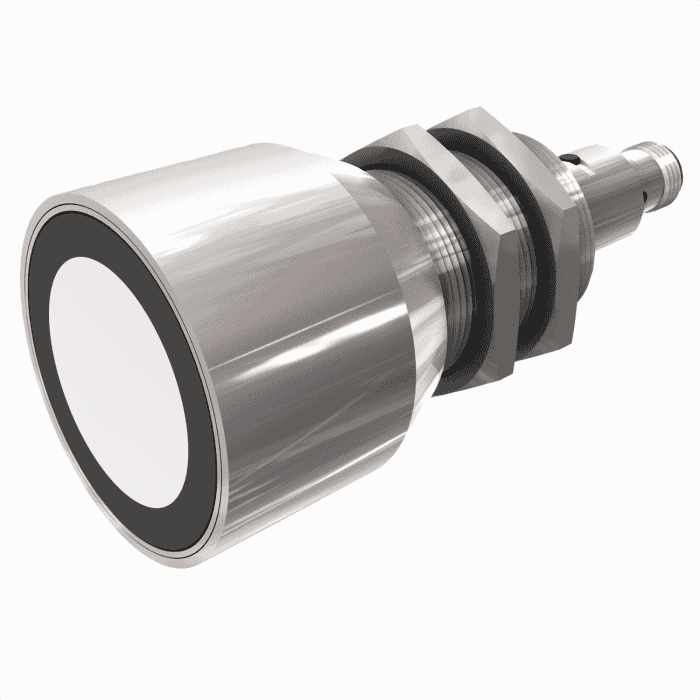

Cảm biến RU600U-EM30E-LIU2PN8X2T-H1151/3GD

Cảm biến siêu âm

Diffuse Mode Sensor

Part number: 1610075

    • Smooth sonic transducer face
    • Cylindrical housing M30, potted
    • Connection via M12 x 1 male
    • Measuring range adjustable via teach button/Easy-Teach
    • Temperature compensation
    • Blind zone: 60 cm
    • Range: 600 cm
    • Resolution: 1 mm
    • Aperture angle of sonic cone: ±15 °
    • 1 × switching output, PNP/NPN
    • 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN
    • NO/NC programmable
    • Transmission of process value and parametrization via IO-link
    • ATEX II 3 G approval
    • Gases and vapors, Group IIC, Zone 2
    • Dust, Group IIIC, Zone 22
    • When used in hazardous areas, the special conditions of the approval must be observed
    • SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable
