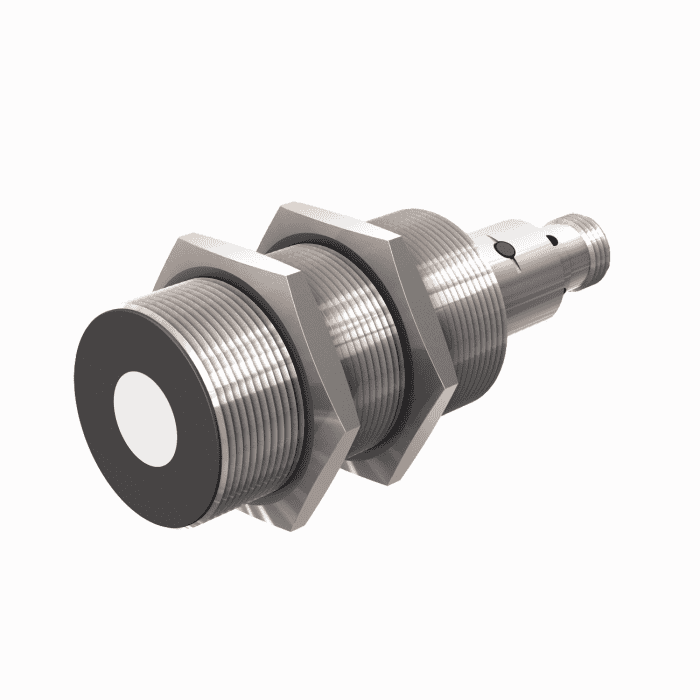

Cảm biến RU300U-M30E-2UP8X2T-H1151/S1331

Cảm biến siêu âm

Diffuse Mode Sensor

Part number: 1610042

    • Smooth sonic transducer face
    • Cylindrical housing M30, potted
    • Connection via M12 x 1 male
    • Measuring range adjustable via teach button/Easy-Teach
    • Temperature compensation
    • Blind zone: 30 cm
    • Range: 300 cm
    • Resolution: 1 mm
    • Aperture angle of sonic cone: ±15 °
    • 2 x switching outputs, PNP
    • Approval: cULus
    • UL Kond.: Amb. Air temp. 85°C, Encl. Type 1, Input: 30VDC, 150mA; Class 2, binary OUT: 30VDC, 150mA each output, max. 2A; Use same supply source for all circuits
